Applying a mapping (Deprecated)

How to apply a previously created mapping file

In case a mapping was previously created, it can be applied to the same architecture using the code integration panel.

When is the mapping automatically applied

• The mapping is automatically applied when using the CLI to upload a new model to a project that has leap_mapping.yaml in its root directory

• The mapping is being directly supplied to the leap projects push command using the --leap-mapping flag

How to manually apply a mapping

1. Ensure the current integration script has a leap_mapping.yaml within the selected script version

2. Verify that that the option to "Apply" the mapping appear in the code integration view and click it

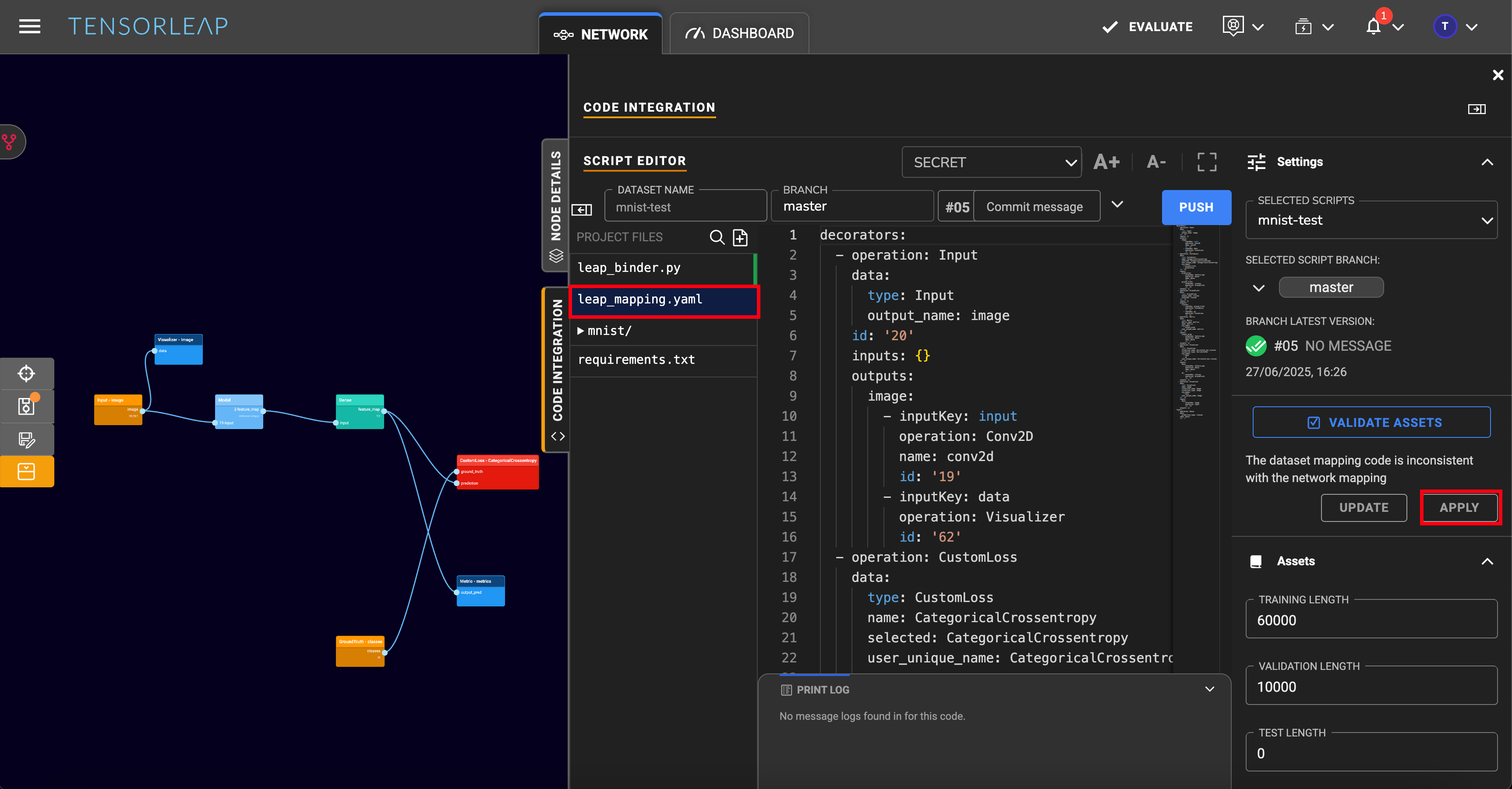

The option to "Apply" a previously defined leap mapping

1. Validate the mapping you applied

2. In case the validation is successful - save the changes made to the current configuration by clicking the "save changes" in the left hand side controller

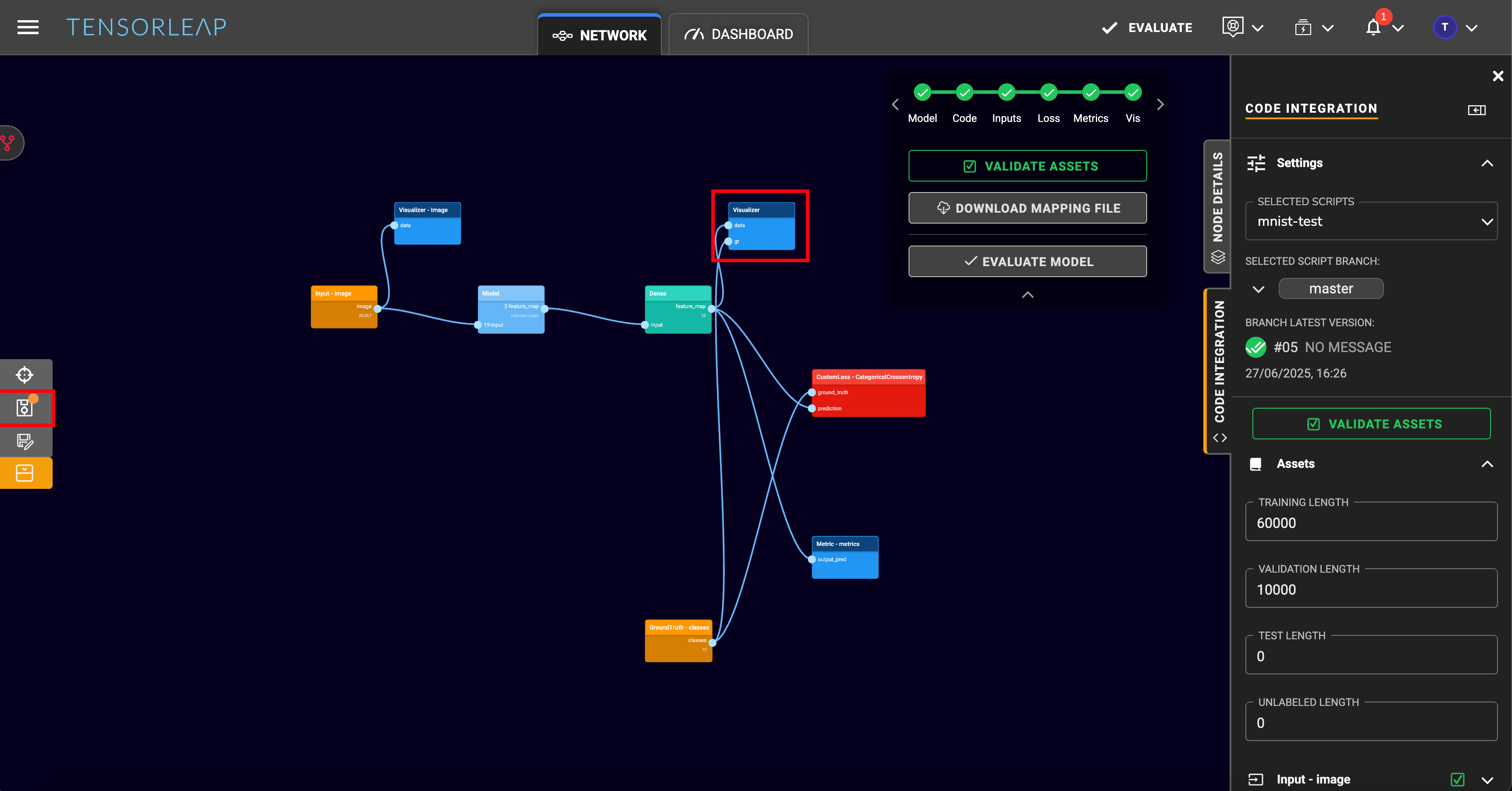

A node is added to the graph after applying a previously defined mapping

If after applying a mapping to an architecture validate assets fail - it means that either the architecture is not the same (layers could be added if the export process was different), or the server had a major upgrade.

For both cases, we advise to not save the change to the configuration that were applied by the mapping, but to create a new mapping
