  1. Examples

Sentiment Analysis

PreviousImage AnalysisNextMNIST Project Walkthrough

Last updated 3 years ago

Was this helpful?

The IMDB Dataset

The IMDB dataset is one of the most popular sentiment analysis datasets. It contains multiple movie reviews, each annotated with either a positive or negative label.

In this example, a classifier model was built to predict positive and negative reviews.

For more information on using Tensorleap with the IMDB dataset, see .

Text Preprocessing

To preprocess the text, first lowercase all words and remove any HTML residues and punctuations. Tokenize the words and feed them into an Embedding layer to embed all the tokens.

Densely Connected Model

A straightforward approach to solving this problem is by using a densely connected model. The proposed is composed of a Dense layer followed by a GlobalAveragePooling1D.

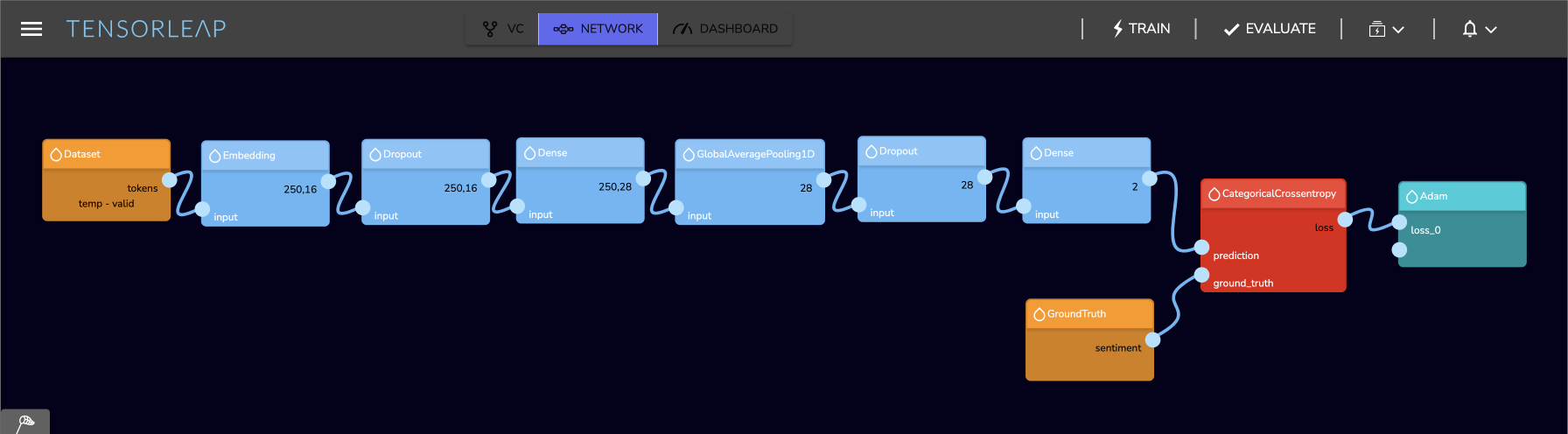

Below is the model's block representation within our platform:

Training Metrics

During the training, our platform collects various performance metrics and metadata that are presented interactively within a customizable Dashboard. This enables further performance and data analysis.

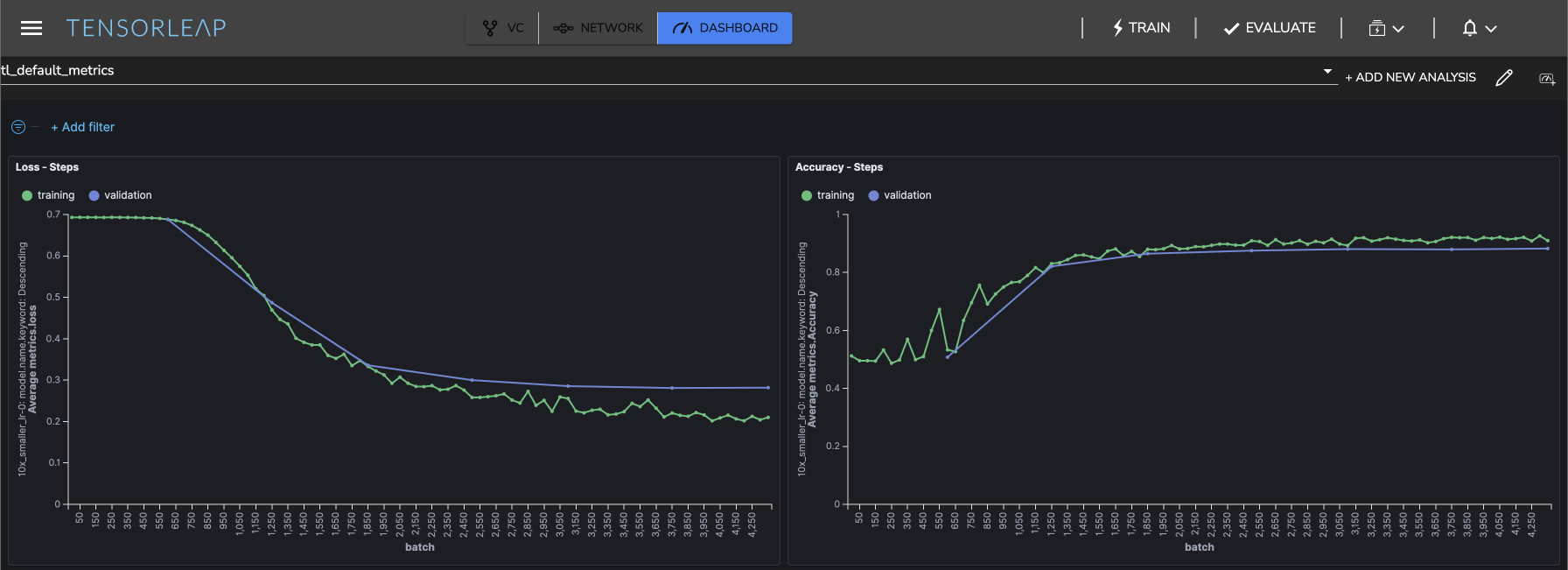

After training the model for 5 epochs, the accuracy is 0.89 and the error loss is 0.26. Below is a visualization of the error loss / accuracy vs batch:

Error Analysis

Population Exploration

The plot below is a population exploration plot. It represents the samples' similarity map based on the model's latent space, built using the extracted features from the trained model.

The samples shown below are taken from the training set and colored based on their ground truth class. The dot's size represents the model's error loss for that specific sample. We can see that there is a clear separation of the samples based on their classes. There are also failing samples (large dots).

Sample Analysis

The Tensorleap platform provides us with a way to further explore the model's response to specific data samples.

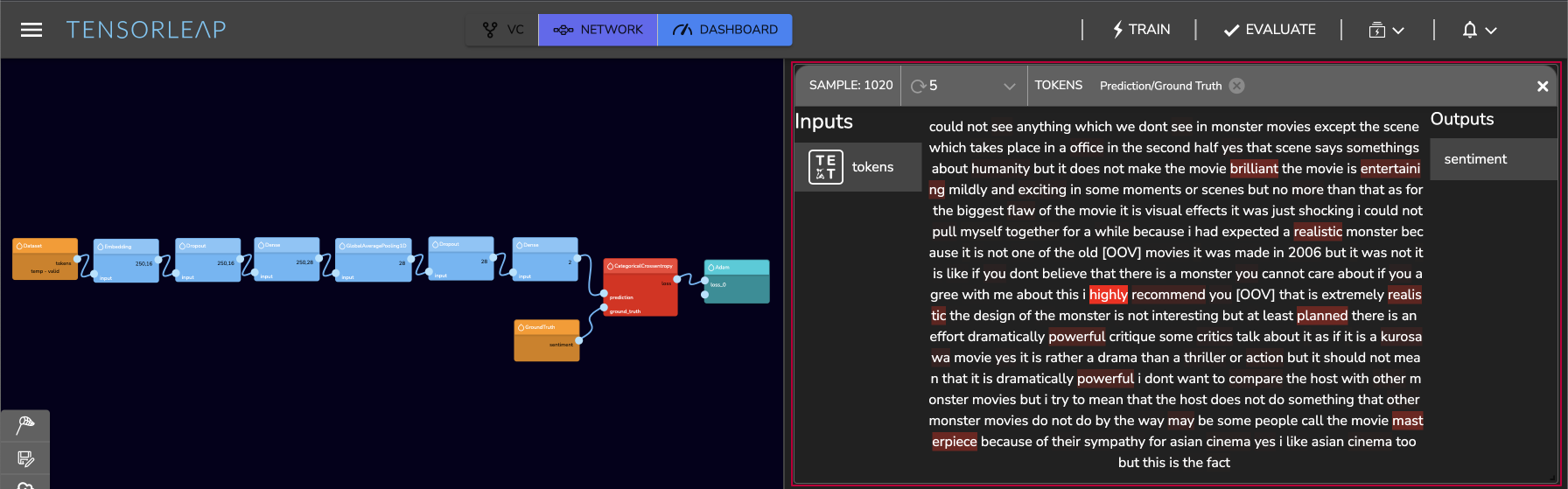

For example, performing Sample Analysis on one of the failing samples shows a false-positive prediction made by the model, with a heat map overlay that scores the significance of each word to the positive prediction:

The heat map highlighted words such as "brilliant", "entertaining", "masterpiece" which indeed translates positively. But when we review their context, we get "mildly entertaining", "not... brilliant", and "masterpiece because of sympathy", which resonates as negative.

The dense model makes its prediction using a single word context, which can lead to inaccurate sentiment analysis. To improve upon this, we will next evaluate a separate convolutional model.

Convolutional Neural Network (CNN)

Our new model uses three convolutional blocks in place of the previously used dense layer, in order to capture a wider context and improve performance.

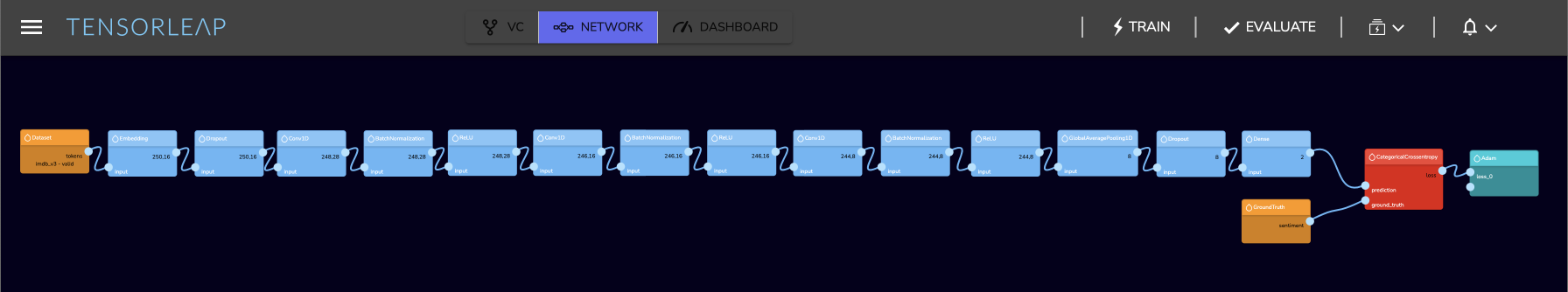

Below is the CNN model represented as block layers within our platform:

After training the model for 3 epochs, its validation accuracy is 0.89 and the error loss is 0.28.

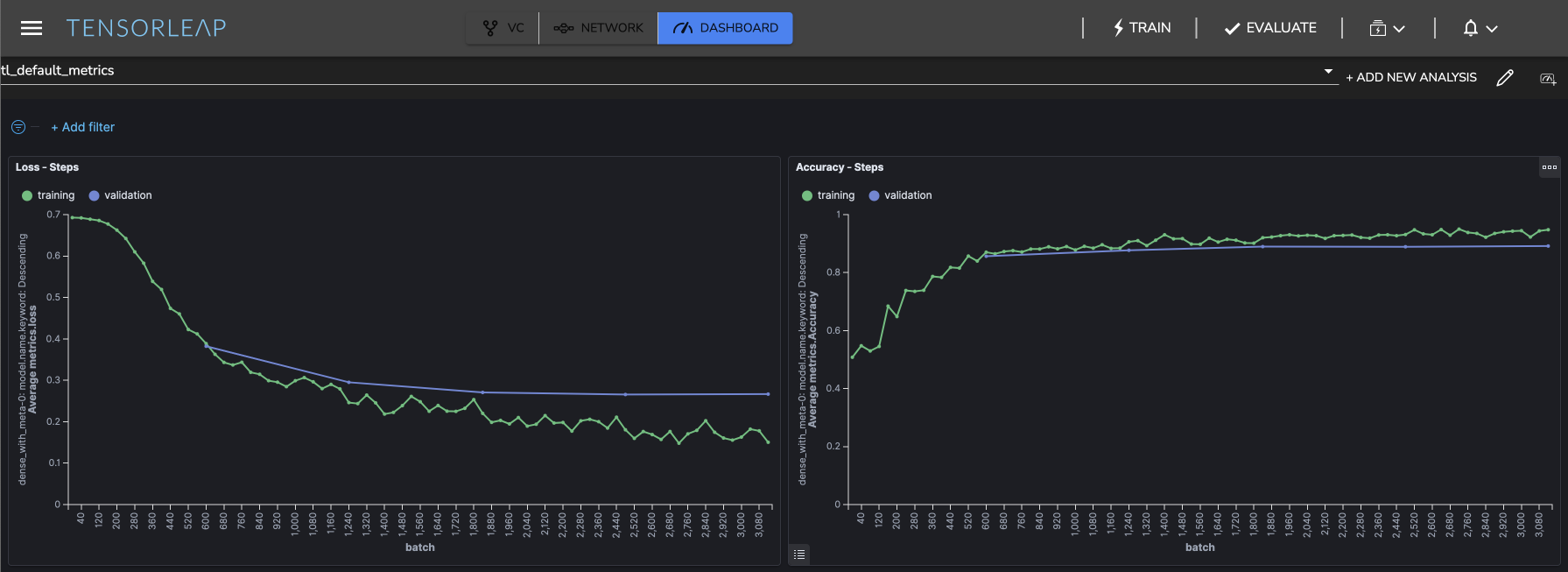

Below is a visualization of the error loss / accuracy vs batch:

Sample Analysis

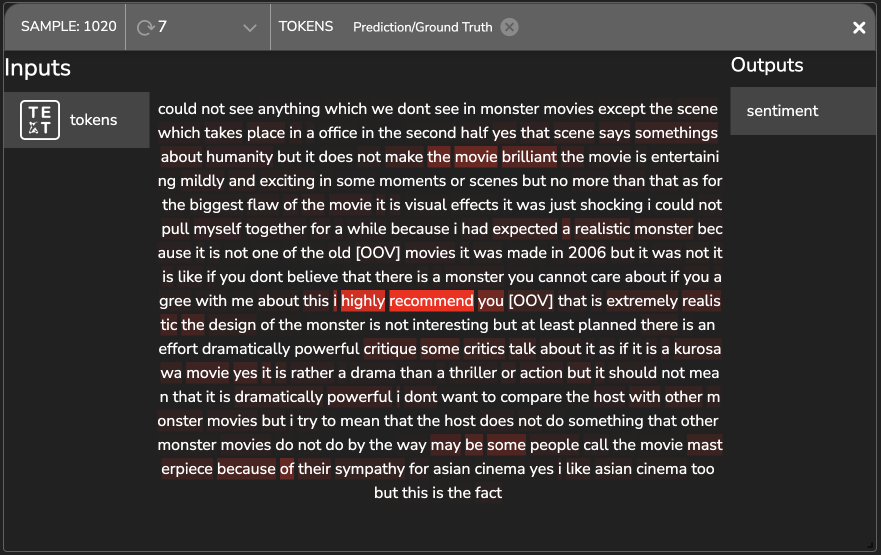

Running Sample Analysis on the same sample, now with the new CNN model, results in a 67% improvement in the error loss. Below are the heat maps correlated with the positive and negative outputs:

As expected, the convolutional model has a much wider context window, which results in the attention being spread over longer phrases. One result of this change is that "entertaining" is no longer an indication of a positive sentiment. In fact, the bigram "entertaining mildly" is now an indicator of a negative sentiment.

Data Exploration

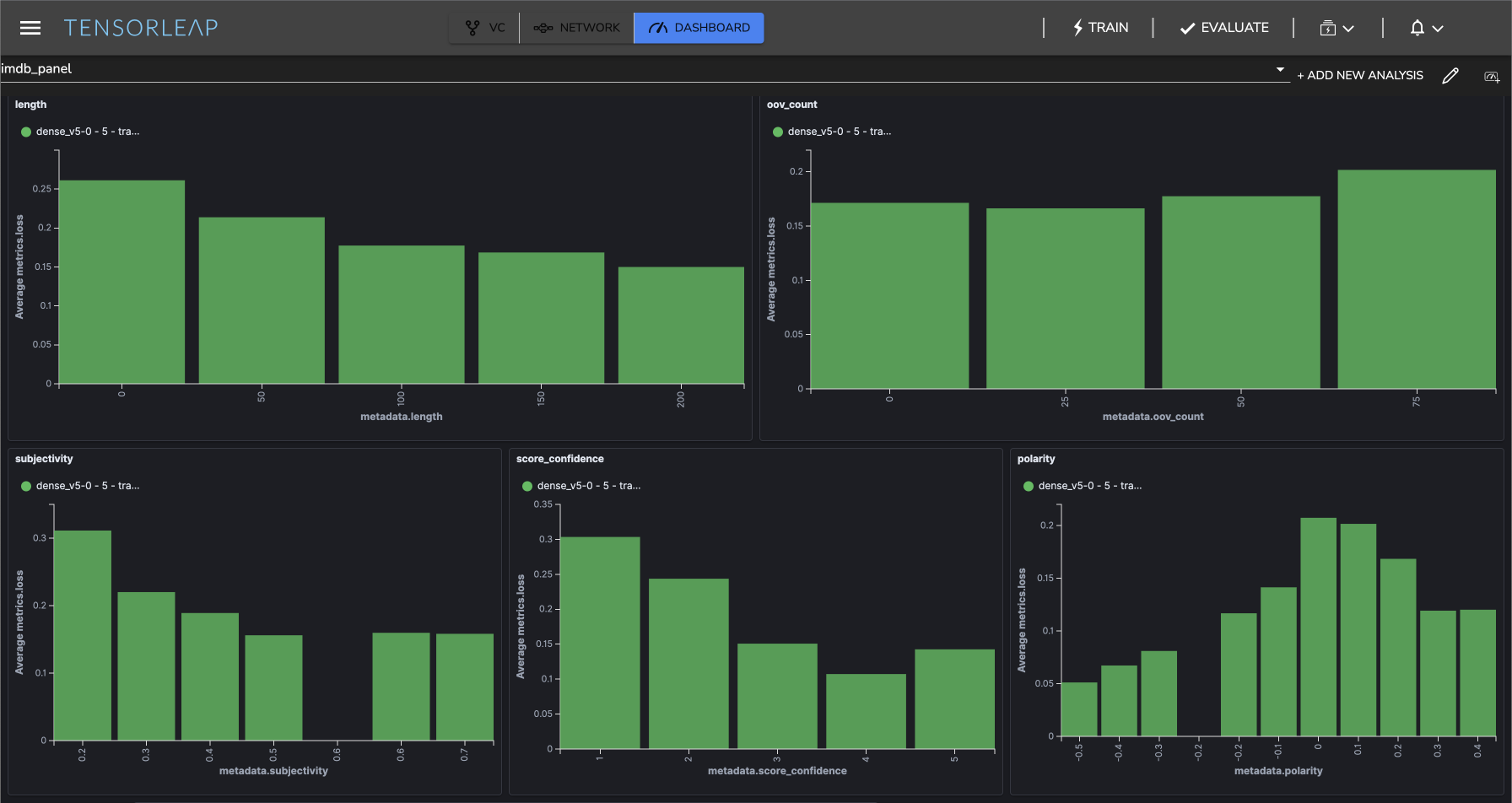

The Tensorleap's Dashboard enables you to see how your data is distributed across various features. Below is a dashboard showing 5 histogram vs loss of informative features:

Different correlation insights from this visualization:

  • length - the shorter the review, the higher the loss.

  • out-of-vocabulary - the more out-of-vocabulary words a review has, the higher its loss.

  • subjectiveness - the more subjective the review is, the lower the loss.

  • score confidence - the more confident a review is (i.e. highly negative or positive), the lower the loss.

  • polarity - an external (TextBlob) polarity analysis shows that sentences with neutral polarity have higher loss.

Unsupervised Clustering

Tensorleap's platform provides an unsupervised clustering of samples based on their similarities.

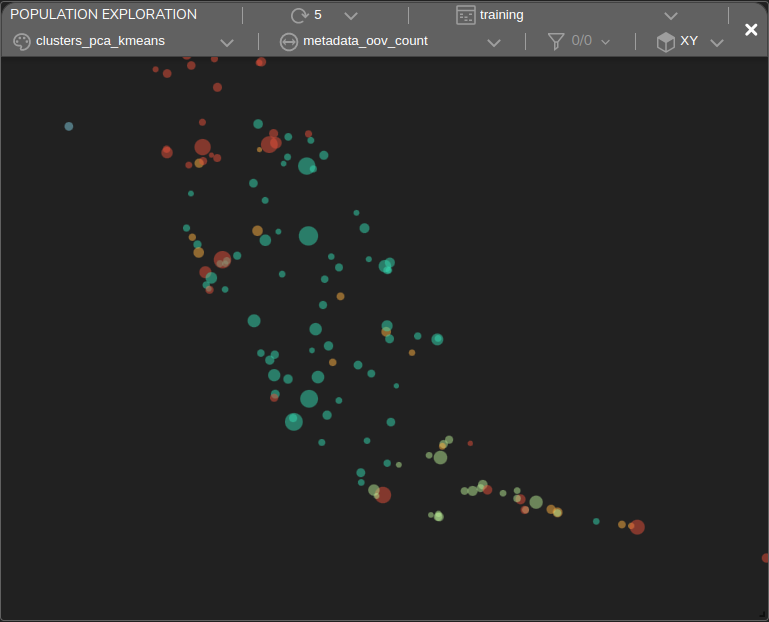

In our use case, we can see that this clustering technique was able to group together samples with common features. For example, in this Population Exploration plot, each cluster is colored, while the size of the dot represents the number of out-of-vector (OOV) words within each sample:

The green cluster is mainly composed of examples with high OOV words. Other clusters, such as the light blue, have fewer samples with high OOV count. Below are the focused views on each of these clusters:

Summary

The Tensorleap platform provides powerful tools for analyzing and understanding deep learning models. In this example, we presented only a few examples of the types of insights that can be gained using the platform.

For more information, please refer to our additional and .

Examples
Guides
IMDB Guide
model
Dense Model (click-to-zoom)
Loss and Accuracy Metrics after Training
Population Exploration Analysis of Training Samples
Sample Analysis of High Loss Samples (click-to-zoom)
CNN Model (click-to-zoom)
Loss and Accuracy Metrics after Training
Positive Heat Map (click-to-zoom)
Negative Heat Map (click-to-zoom)
Dashboard - Histogram vs. Loss for 5 Informative Features
Population Exploration - Unsupervised Clustering + OOV Dot Size
Focus on the Green Cluster - High OOV

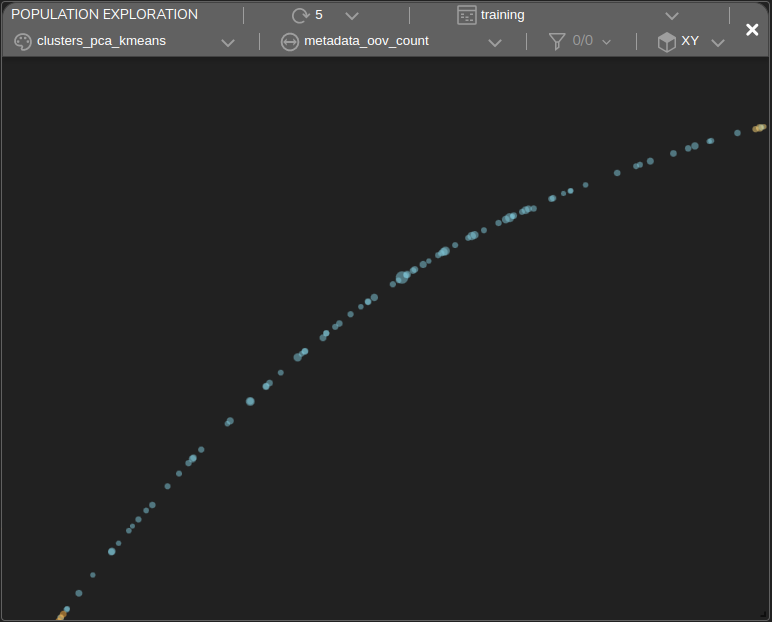

Focus on the Blue Cluster - Low OOV
