Model Integration

PreviousDataset IntegrationNextModel Perception Analysis

Last updated 2 years ago

Was this helpful?

In this section, we will set up our classification model by either importing or building it.

Project Setup

First step is to with the nameIMDB, and the description Review Classifier.

The project name, IMDB, is set with the leap init command, as discussed in above.

The project page contains the Network and Dashboard views. To toggle them, click the buttons at the top.

Dataset Block Setup

We'll start by pointing the model's dataset block to our imdb dataset. This will update the Dataset Block with the relevant input.

In the Network view, click the Dataset Block to display the Dataset Details panel on the right, then click Connect Dataset and select imdb dataset from the list.

A more detailed explanation about this step can be found at .

Set Model Layers

Importing a Model from Tensorflow or PyTorch

Tensorleap can import a model saved by Tensorflow (PB/H5/JSON_TF2) and PyTorch (ONNX). More information can be found at Import Model.

In this sample code, a simple dense model is created using Tensorflow and then saved as a file named imdb-dense.h5.

import tensorflow as tf

MAX_FEATURES = 10000
SEQUENCE_LENGTH = 250

vectorized_inputs = tf.keras.Input(shape=250, dtype="int64")
x = tf.keras.layers.Embedding(MAX_FEATURES + 1, SEQUENCE_LENGTH)(vectorized_inputs)
x = tf.keras.layers.Dropout(0.2)(x)
x = tf.keras.layers.Dense(28, activation='relu')(x)
x = tf.keras.layers.GlobalAveragePooling1D()(x)
x = tf.keras.layers.Dropout(0.2)(x)
output = tf.keras.layers.Dense(2, activation='softmax')(x)

model = tf.keras.Model(inputs=vectorized_inputs, outputs=output)
model.save('imdb-dense.h5')

For your convenience, you can also download this file here:

Import Model

  1. Set the Revision Name to imdb-dense and the Model Name to pre-trained.

  2. For File Type, use H5_TF2 and select imdb-dense.h5 in the Upload File field.

  3. Click the Import button.

  4. Back in the Network view, set the Dataset Block to point to the imdb Dataset Instance, and connect it to the first layer.

Building our Classification Model using UI

In this section, we will add layers, update their properties, and connect them together to form the model.

The model that we will build is based on a small dense neural network described below:

Layers
Properties

Embedding

input_dim=10001, output_dim=250

Dropout

rate=0.2

Dense

units=28, activation="relu"'

GlobalAveragePooling1D

Dropout

rate=0.2

Dense

units=2, activation="softmax"

Adding Layers and Their Properties

In the Network view, follow these steps for each layer:

All steps are illustrated below.

Build Model

Tensorleap Model Integration Script

Edit the .tensorleap/model.py file and point it to the model defined in imdb_dense.py:

from pathlib import Path
from imdb_dense import build_model


def leap_save_model(target_file_path: Path):
    # Load your model
    model = build_model()
    # Save it to the path supplied as an arugment (has a .h5 suffix)
    model.save(target_file_path)

To validate the correctness of our code, run the following command:

leap check --all

If done correctly, there should be no errors and we can move forward and push the model using the following command:

leap push --model --description=imdb-dense --model-name=pre-trained

Opening the Model in the UI

  • Back on the Network view, set the Dataset Block to point to the imdb Dataset Instance, and connect it to the first layer.

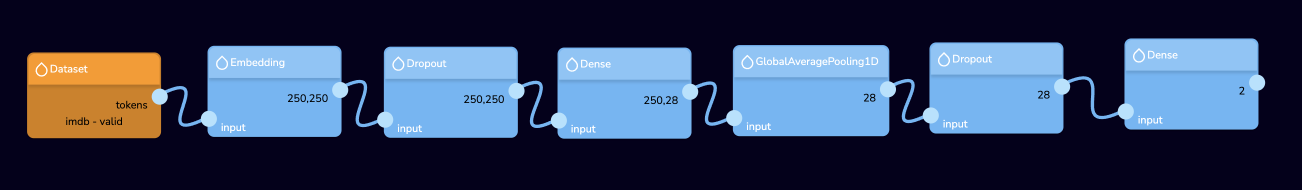

Once all layers have been connected to each other, the model should look like this:

Each block shows the calculated output shape affected by the preceding layers.

Add Loss and Optimizer

After completing this section, our model will be ready for training.

Within the Network view:

  1. Right-click and add the following:

    • Loss -> CategoricalCrossentropy

    • GroundTruth, and set it to Ground Truth - classes

    • Optimizer -> Adam

  2. Connect the last Dense layer and the GroundTruth to the CategoricalCrossentropy block. Additionally, connect the Loss block to the Adam optimizer.

All steps are illustrated below.

Add Visualizers

Dataset Input Visualizer

There must be at least one visualizer connected to the model's input for analysis. To add the Visualizer for the input, follow the steps below.

Within the Network view:

  1. Right-click and choose Visualizer to add it.

  2. Click the Visualizer node to open up the Visualizer Details on the right.

  3. Choose text_from_token from the Selected Visulizer list.

  4. Connect the Dataset node output to the input of the Visualizer node.

Prediction and Ground Truth Visualizers

Additional visualizers will be connected to the prediction and ground truth.

To visualize the model's prediction output, follow the steps below:

Within the Network view:

  1. Right-click and choose Visualizer to add it.

  2. Click the Visualizer node to open up the Visualizer Details on the right.

  3. Choose HorizontalBar from the Selected Visualizer list.

  4. Connect the last Dense layer output to the input of the Visualizer node.

  5. Repeat the steps, and connect the second visualizer to the GroundTruth node's output.

Save Network Version

Great! Your first version is ready to be saved.

Training

Tensorleap can import trained and untrained models. In our case, the model was created from scratch and needs to be trained.

Metrics

Once training begins, you can start tracking metrics in real-time.

Add a Dashboard and Dashlets

Once training begins, you can start tracking metrics in real-time.

From the Dashboard view on the right, select the tl_default_metrics from the list at the top. This will open up the Metrics dashboard.

As training progresses, you should see loss values declining and accuracy values increasing. When training is completed, the model achieved an accuracy of 89% at the 3rd epoch.

Up Next - Model Perception Analysis

Tensorleap provides a host of innovative tools for model analysis and debugging. It tracks how each sample flows through each layer, and how each learned feature flows through the model. It also stores metrics in a big dataset to analyze the model's response to data.

In the Network view, click the Import Model button to open the Import Model panel.

Once completed, the imported model, imdb-dense, is added to the view. Position your cursor over that version, click to Open Commit.

Right-click and add the corresponding layer. More info at .

Update the corresponding properties in the Layer Properties view on the right. More info at .

Connect the Dataset to the first layer, and then connect all the layers in order. More info at .

Copy the imdb_dense.py file to the imdb folder we created in . This file defines the dense model, and can be found here:

Once completed, open the UI, where you should see the imported model, imdb_dense,in the view.

Position your cursor over the view and click on the right to Open Commit.

In this section, we will set the Categorical Crossentropy loss function, and connect it to both the dataset's ground truth and the last layer in our model. We'll then add an Adam Optimizer block and connect it to the loss block. For more information at .

Visualizers defines how to visualize tensors within the model graph. For more info, see .

Click the button and set the Revision Name to dense-nn (Dense Neural Network). This adds the new version to the view. For more information, see .

To train the model, click from the top bar. Let's set Batch Size to 32 and the Number of Epochs to 5 and click . For more information, see .

To add a new , click and fill in the dashboard name - imdb.

Make sure that the model is selected from the view, and add a new Dashlet.

Click for a , set the name to Loss, and turn on Split series by subset to separate training and validation metrics.

Next, add another for the accuracy. Follow all the previous steps to add it and set the Dashlet Name to Accuracy and set the Y-Axis to metrics.Accuracy. Do not forget turn on Split series by subset.

We've discussed integrating and training our model. It's now time to analyze it. The part of this tutorial will demonstrate various analyses of the model and data.

Once you are ready, proceed to .

Add Layers
Versions
Loss and Optimizer
Visualizers
Versions
next
Model Perception Analysis
Dataset Integration
Create a Project
Dataset Block
Dataset Integration
Versions
Versions
Evaluate/Train Model
Metrics Dashboard
Save a Version
Layer Properties
Connections
Line Dashlet
Line Dashlet
Add Layers and Connect Them
10MB
imdb-dense.h5
580B
imdb_dense.py
Importing a Model and Dataset Block Setup
Connected Layers and Dataset
Add Loss and Optimizer
Full Model with Dataset, Layers, Loss and an Optimizer

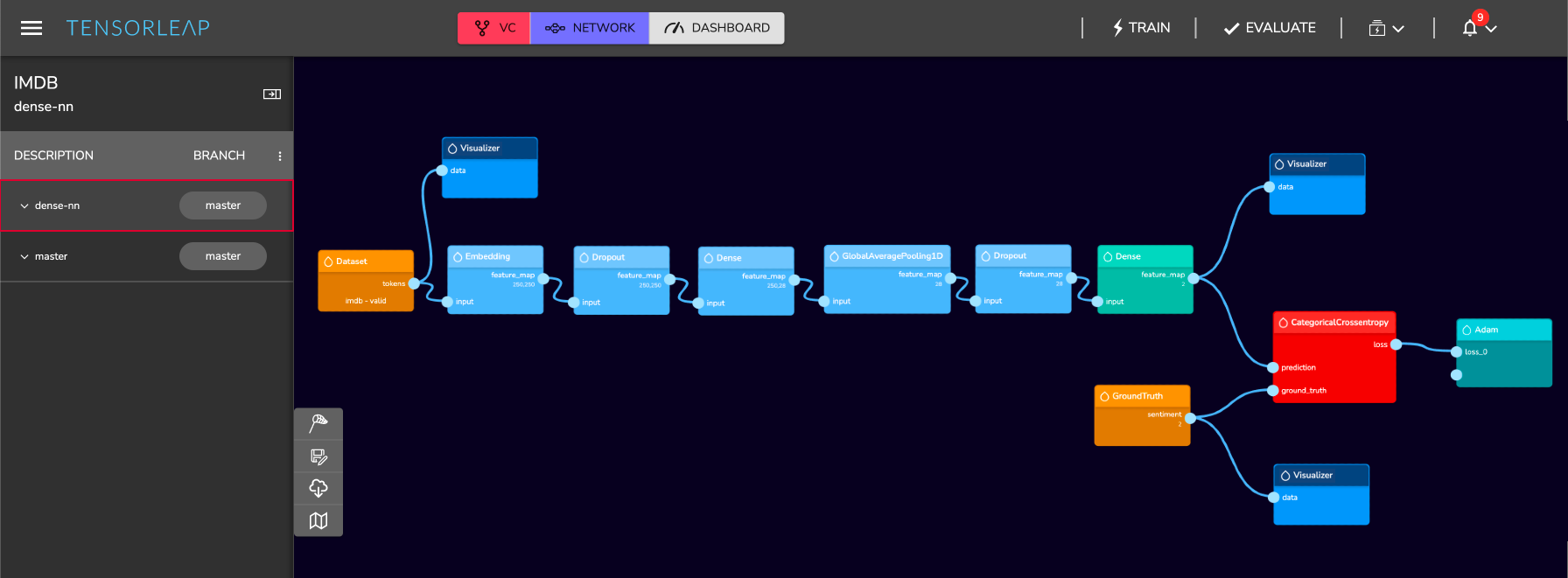

The newly-saved version appears on the Versions view
